BOTDR1000 · 布里渊光时域反射仪
BOTDR单端接入，适合只允许从一端接入的线性资产。
BOTDR1000布里渊光时域反射仪
BOTDR1000 Brillouin Optical Time-Domain Reflectometer
产品原理与应用 Principle and applications
基于自发布里渊背向散射与光时域定位，采用单芯光纤、单端接入，获取沿线布里渊频移及温度或应变分布。最大配置量程60 km，典型测量时间60–300 s/通道。
Uses spontaneous Brillouin backscattering and time-domain localization. Single-core, single-ended access measures Brillouin frequency shift and temperature or strain along the fiber. Maximum configured range is 60 km; typical acquisition time is 60–300 s/channel.

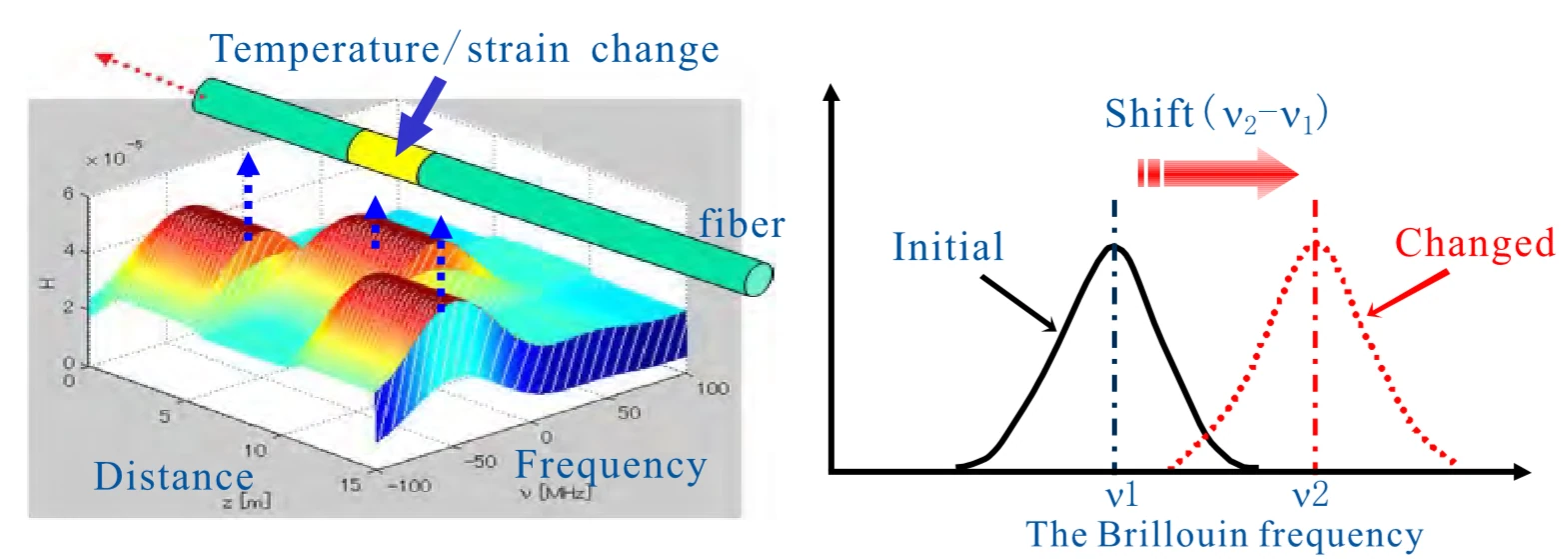

布里渊频移同时受温度与轴向应变影响。测量应变时需要温度补偿，测量温度时需要消除或约束应变影响；单条频移曲线不能独立分离两个未知量。
Brillouin frequency shift responds to both temperature and axial strain. Strain measurement requires temperature compensation; temperature measurement requires strain isolation or correction. One frequency-shift trace cannot independently determine both unknown quantities.
采用光学传感与传输，抗电磁干扰；支持连续沿线测量、事件定位、光纤故障监测及长期状态管理。危险区域的光缆与整套系统按相应使用条件选配。
Optical sensing and transmission resist EMI and support continuous profiles, event location, fiber-fault monitoring and long-term condition management. Select the cable and complete system for the applicable hazardous-area conditions.
量程、空间分辨率、平均时间与测量精度存在配置关联，长距离与最高分辨率不一定同时达到。温度量程取决于传感光纤及护套；应变需通过可靠机械耦合传递至光纤。
Range, spatial resolution, averaging time and accuracy are configuration-dependent and not necessarily achieved simultaneously. Temperature range depends on the fiber and jacket; strain requires reliable mechanical transfer into the fiber.
技术参数 Technical specifications
| 项目 / Item | 规格 / Specification |
|---|---|
| 系统定位误差 / System location error | <1 m（对应配置与标定条件） <1 m under the specified configuration and calibration conditions |
| 光纤类型 / Fiber Type | 标准单模光纤 Standard single-mode fiber |
| 光纤配置 / Fiber Configuration | 单芯光纤，单端测量 Single fiber core, single-ended measurement |
| 测量距离 / Measurement Range | 5km/20km/50km/60km |
| 测量通道 / Measurement Channels | 1/2/4/8 根据需要选配 Configurable as required |
| 测量时间 / Measurement Time | 60~300s/通道（典型） 60-300 s/channel (typical) |
| 测量范围 / Measurement Range | （-40~+100)°C/（-10000~+10000)με (-40 to +100) °C / (-10000 to +10000) με |
| 测量精度 / Measurement Accuracy | ±1°C/±20με ±1 °C / ±20 με |
| 测量分辨率 / Measurement Resolution | 0.2°C/4με 0.2 °C / 4 με |
| 采样间隔 / Sampling Interval | 0.1/0.2/0.4/0.8m 采样间隔与量程按配置匹配；0.1 m适用于5 km配置 Match spacing to the configured range; 0.1 m applies to the 5 km configuration |
| 空间分辨率 / Spatial resolution | 1–50 m（取决于光缆损耗与测量设置） 1–50 m (depending on cable loss and measurement settings) |
| 报警方式 / Alarm Mode | 定值、差值、区域差值 Fixed threshold, differential, and zonal differential |
| 报警分区 / Alarm Zones | 500分区/通道 500 zones/channel 各分区独立设置报警阈值 Alarm thresholds can be set independently for each zone |
| 光纤接头 / Optical Connector | FC/APC |
| 存储空间 / Storage Capacity | 1TB |
| 工作条件 / Operating Conditions | −10～+50 °C；0～95% RH（无凝露） −10 to +50 °C; 0–95% RH (non-condensing) |
| 工作电源 / Power Supply | 220VAC，-48VDC（可选） 220 VAC, -48 VDC (optional) |
| 尺寸（W×D×H） / Dimensions (W x D x H) | 483 × 447 × 133 mm（19英寸机架式） 483 × 447 × 133 mm (19-inch rack-mount) |
| 重量 / Weight | <15kg |

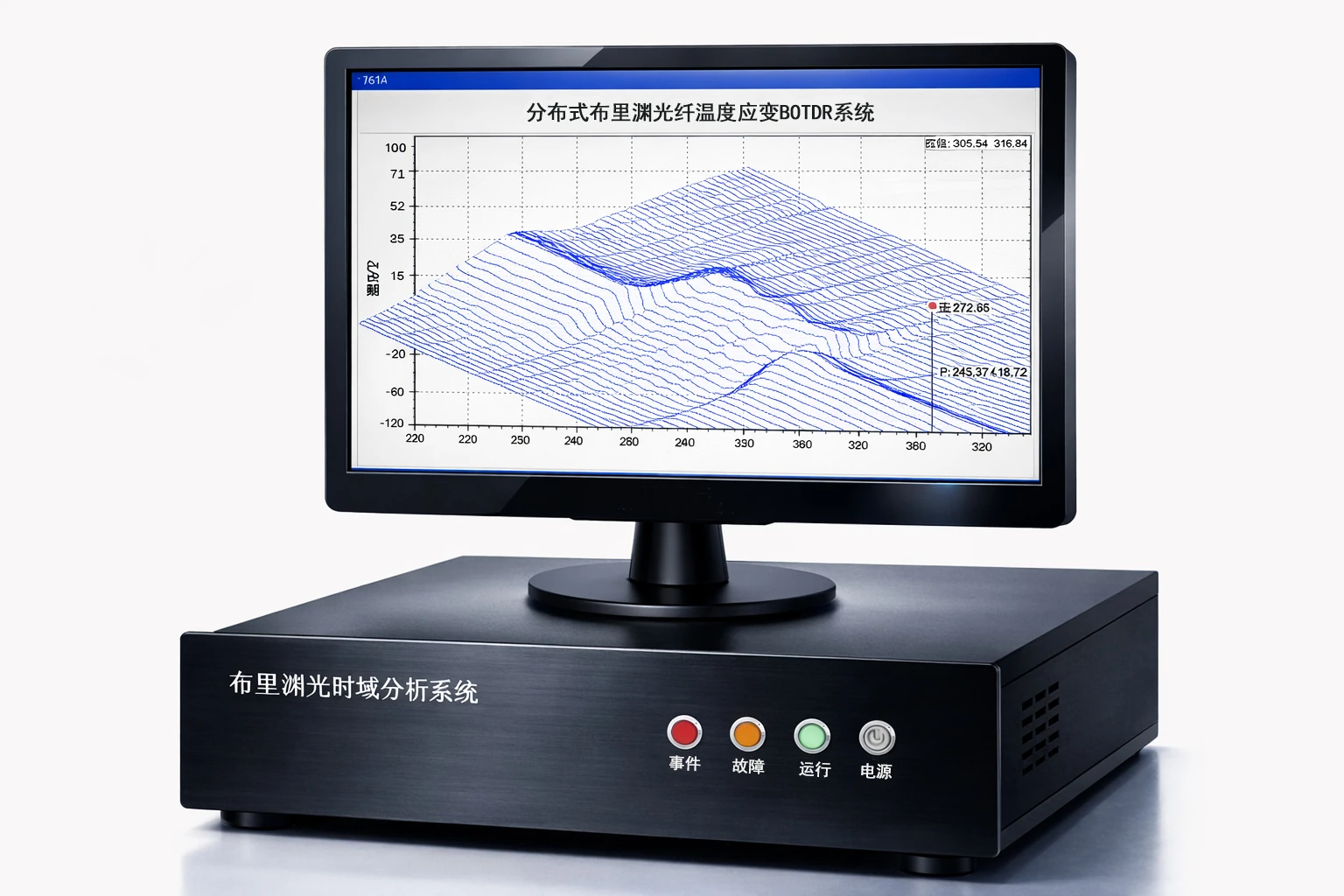

产品与应用示意 Product and application views
